USB CDMA无线上网卡功能介绍：
本产品已经通过中华人民共和国国家知识产权局专利局申请专利
专利号：ZL 2004 3 0033516.3
我公司生产的无线上网卡系列产品被中国轻工产品质量公证十佳品牌称号

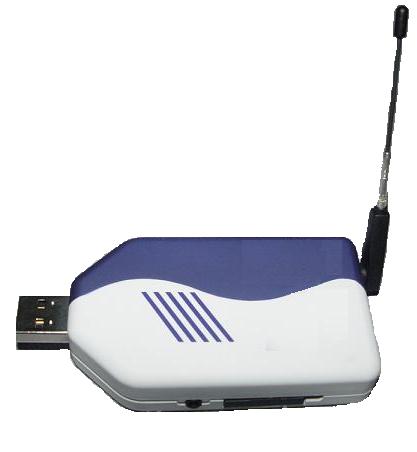

Baiyi USB CDMA无线Modem专为广大自由职业人员提供高效便捷的无线通信。无论何时何地通过手提电脑都可自由移动上网。就像有线上网功能一样，不受WPA限制。适用于所有主要的操作系统，包括WINDOWS（XP，2000，NT，98，ME）。
- 无线上网
- 拨打电话
- 接收和发送短消息
- 查询短消息
- 保存历史记录
- 自动统计上网时间
- 通讯簿功能
- 导出UIM卡中的数据
- 查询信号，电量状态
- 浏览任意Internet 网页
- 收发E-mail
- 电话语音功能
- 捕获最新股票信息、体育新闻
- 查询公司内部数据库等
Baiyi USB CDMA 无线上网Modem是为语音、短消息、 数据和CDMA无线上网而设计的。
单频800MHZ，CDMA20001xRTT模块
执行标准：FCC/SAR和CDG1，2&3
待机电流：5mA 在通话状态 ：200-400mA
输入电压：5V，USB 接口直接供电，不需要外接电源
外部尺寸：75x45x15mm
重量：38g
支持AT命令，支持TCP/IP，UDP以及PPP协议
153Kbps全双工传输率，最高速率，升级最高速率和半速率
双音多频功能（DTMF）
短信息服务功能
来电显示
电话簿管理
UIM增值服务
数据特征：
USB接口
超小型天线接口，高灵敏度天线
语音接口，来电通过语音接口可以收发语音
自动进入省电模式
3V活动UIM插槽
外置360度可旋转可折高灵敏度天线
USB连接线
USB 驱动程序及安装使用光盘
语音通讯、短信息收发
无线收发电子邮件、CDMA无线高速上网
无线数据传输、移动办公及管理
ENGLISH:
USB CDMA wireless PC card function introduction：
USB CDMA wireless Modem specially provides the highly effective convenient wireless correspondence for the general liberal professions personnel. Whenever where all can freely move through the portable computer accesses the net. Likes wired accesses the net the function to be same, not WPA limit. Is suitable to all main operating system, including WINDOWS (XP, 2,000, NT, 98, ME).
Wireless accesses the net
Dials the telephone
Receives and transmits the SMS
Inquires the SMS
Preservation historic record
The automatic statistics accesses the net the time
Communication book function
Derives in the UIM card the data
Inquiry signal, electric quantity condition
Browsing wilfully Internet homepage
Receives and dispatches E-mail
Telephone pronunciation function
Capture newest stock information, sporting news
Inquires the company interior database...etc
Product characteristic
USB CDMA wireless accesses the net Modem is for the pronunciation, the short news, the data and CDMA wireless accesses the net designs.
Waits for an opportunity the electric current: 5mA
In telephone conversation condition: 200-400mA
Input voltage: 5V, the USB connection direct power supply, does not need the external power supply
Outside measurement：75x45x15mm
Weight ：38g
Basic characteristic
Supports the AT order, supports TCP/IP, UDP as well as the PPP agreement
153Kbps entire duplex transmissibility, maximum speed, promotion maximum speed and half speed rate
Double sound multi- frequencies function (DTMF)
SMS service function
Attachment service
Comes the electricity demonstration
Telephone directory management
UIM increment service
CDMA data characteristic
Data characteristic:
USB connection
Subminiature antenna connection, high sensitivity antenna
The pronunciation connection, comes the electricity to be allowed to receive and dispatch the pronunciation through the pronunciation connection
Automatically enters the province electricity pattern
3V moves the UIM slot
Fitting
Outside sets at 360 to be possible to revolve may fold the high sensitivity antenna
USB line
The USB driver and installs uses the compact
Using
Pronunciation communication, short information receiving and dispatching
The wireless receiving and dispatching email, CDMA wireless high speed access the net
Wireless data transmission, motion work and management
|
