功能简介：

U6100 Product Specifications Item Description Model U6100 HSPA module   Technical Standard HSUPA Up to 2.0 Mbps uplink(Can be updated to 5.76Mbps) HSDPA Up to 7.2 Mbps downlink UMTS Up to 384Kbps downlink and uplink EDGE Class 12, up to 237 Kbps DL and 118Kbps UL GPRS Up to 85,6 Kbps DL and 42,8 Kbps UL Frequency Band UMTS 850/1900/2100MHz GSM/GPRS/EDGE 850/900/1800/1900MHz External Interface Antenna RF Connector, External Antenna PAD USB USB 2.0 High Speed SIM/USIM Card Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and31.102 AT Interface 3GPP TS27.005/3GPP TS27.007supported Main Features Auto installation Support Dimension (mm) 45(D)mm×24(W)mm×4.6(H)mm LED Support Operate system Win2000/ XP/VISTA/CE,VISTA64,Linux2.4,Linux2.6 Languages support English, Simple Chinese, Traditional Chinese, more languages could be supported Hardware Platform Qualcomm 6290 Phone Book Phone Book Capacity Depends on SIM card new contacts Support edit contacts Support delete contacts Support send SMS Support SMS SMS Capability Relate to SIM card new SMS Support send SMS Support reply SMS Support forward SMS Support delete SMS Support 数据传输 *HSUPA -下行速率最大7.2Mbps -上行速率最大5.6Mbps * HSDPA - 下行速率最大3.6Mbps * WCDMA -下行速率最大384Kbps -上行速率最大384Kbps * EDGE -下行速率最大 236.8Kbps -上行速率最大118Kbps * GPRS -下行速率最大 85.6Kbps -上行速率最大42.8Kbps * CSD - GSM数据传输速率14.4Kbps - WCDMA数据传输速率57.6Kbps 短信 * 点对点MO和MT * 文本和PDU模式 CSD * 支持 GSM and WCDMA 网络识别和时区（NITZ） * 支持 GSM and WCDMA

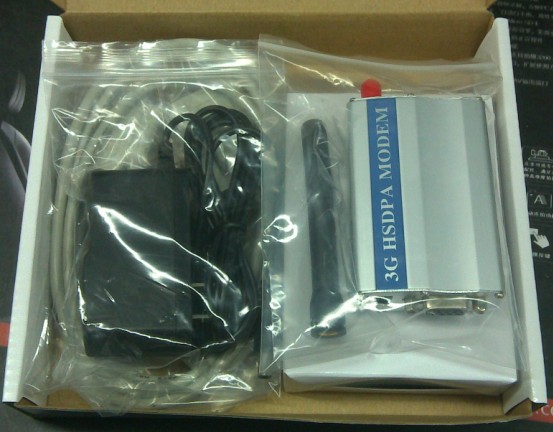

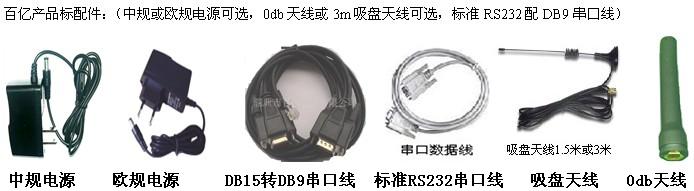

清单(可看百亿产品标配)
